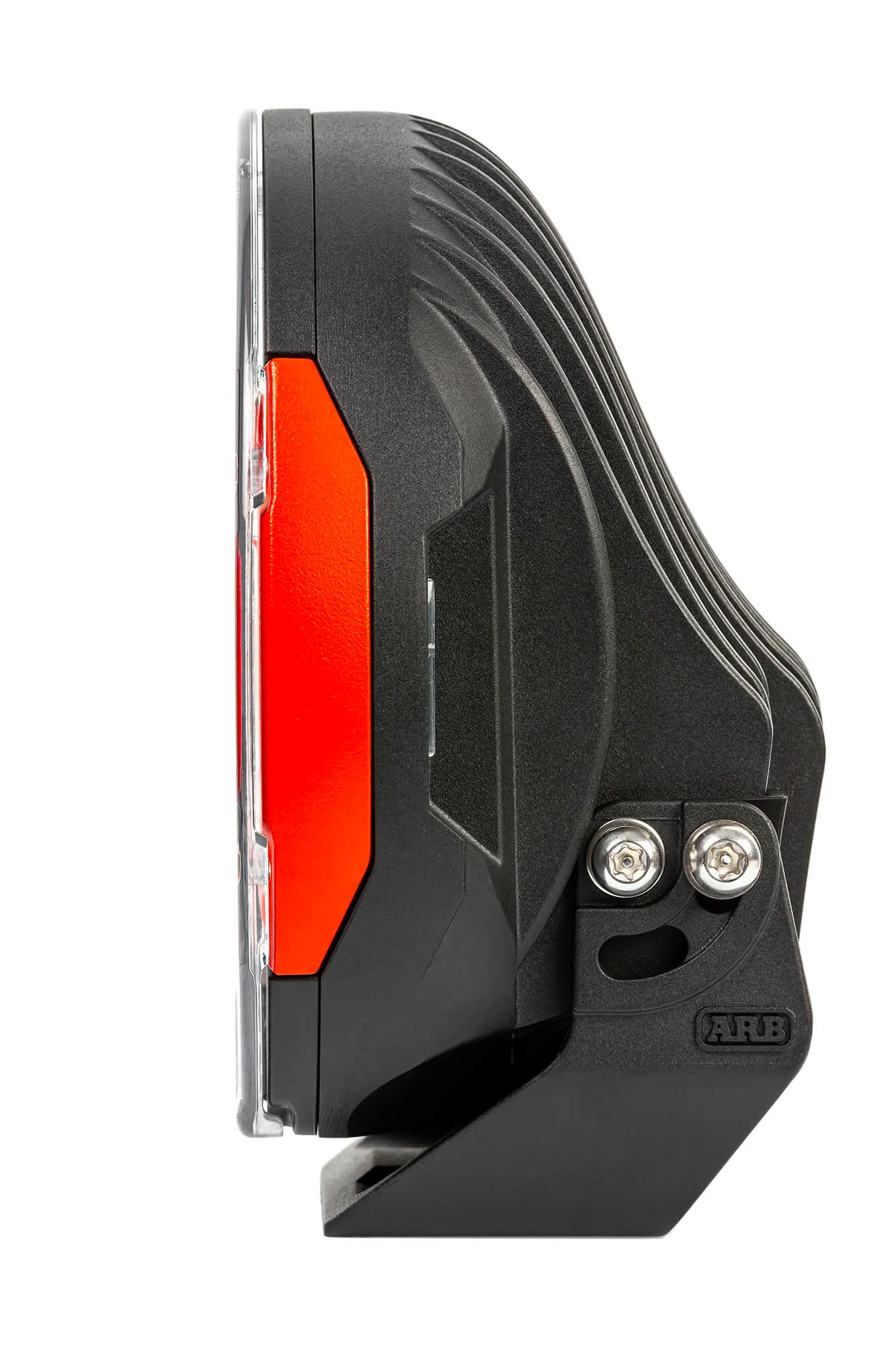

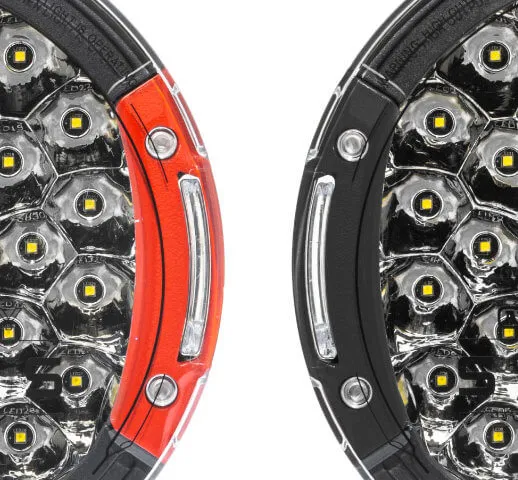

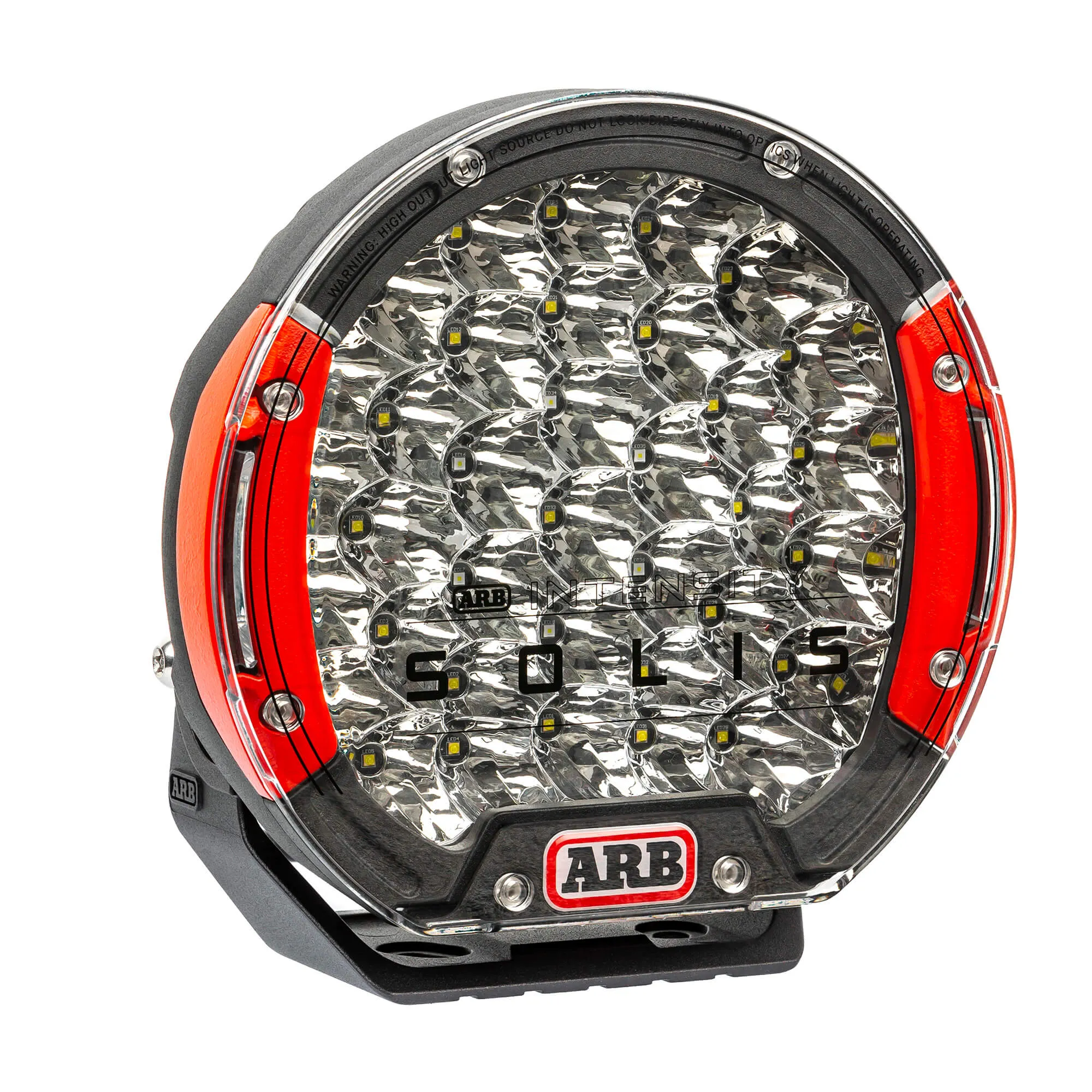

Filled with features, Intensity Solis driving lights are available in a Spot or Flood beam which come with interchangeable red and black die-cast side bezels. New to the Intensity range is the Solis’ 5-stage dimmability function, while the introduction of a highly tuned single-piece reflector and 165 watts of OSRAM LED performance bring it to the top of the class in light output.
Not just a remarkable performer, Intensity Solis driving lights represent a value proposition that is worth considering if you’re looking to add some additional driving lights to your vehicle.
LIGHT OUTPUT AND DIMMABILITY

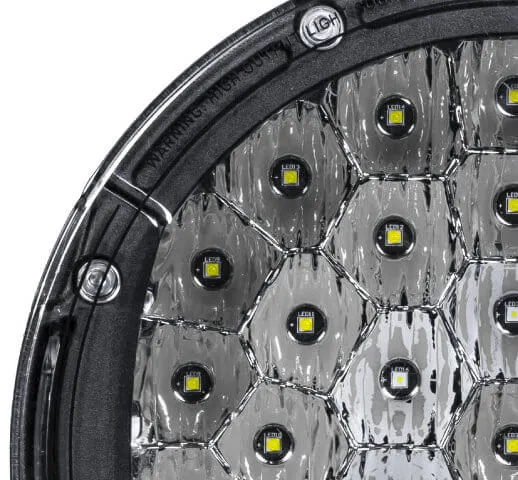

The combination of 6x 10 watt and 30x 4 watt performance OSRAM LEDs with a highly tuned reflector design has brought the Intensity Solis to the top of the class in light output.

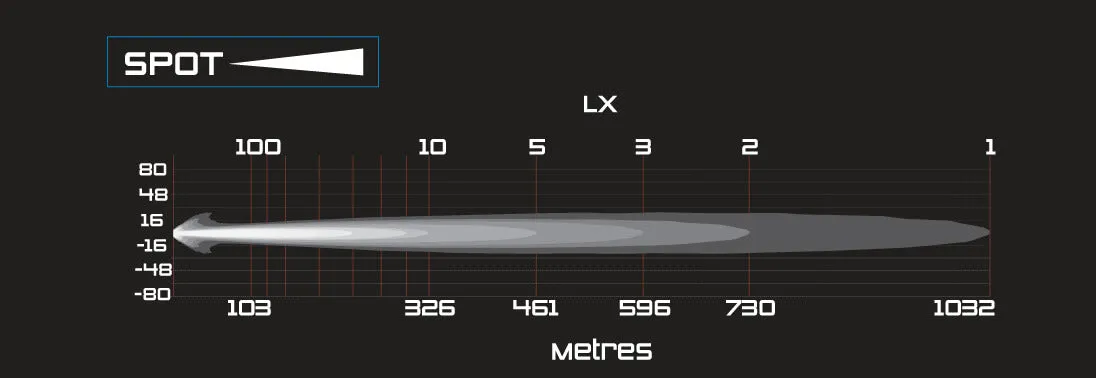

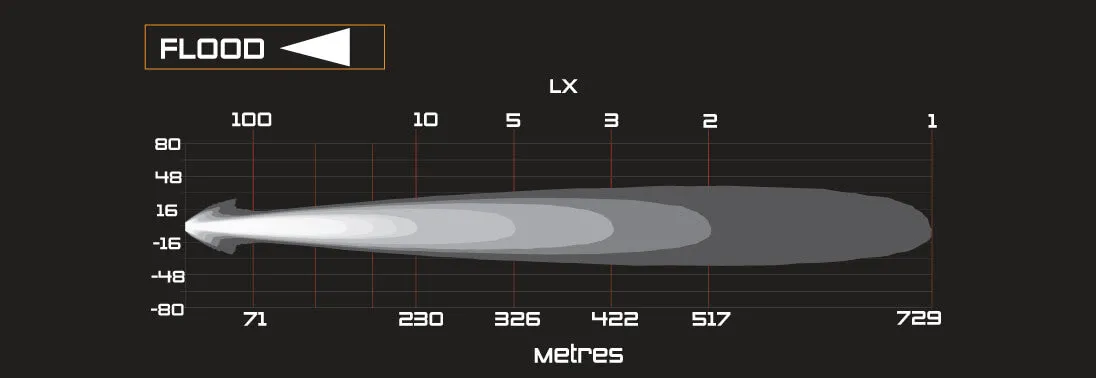

Measured as a pair of spot beams, the Solis boasts 1 lux @ 4796 feet. Individually, a single flood beam will achieve 1 lux @ 2391 feet while one spot beam has an impressive 3385 feet throw.
Lights this bright need some level of containment, which is why Intensity Solis lights are sold standard with a 5-stage dimmability switch.
The ability to dim driving lights is perfect for when you’re approaching highly reflective road signs and is also really effective in low visibility scenarios (such as dust).

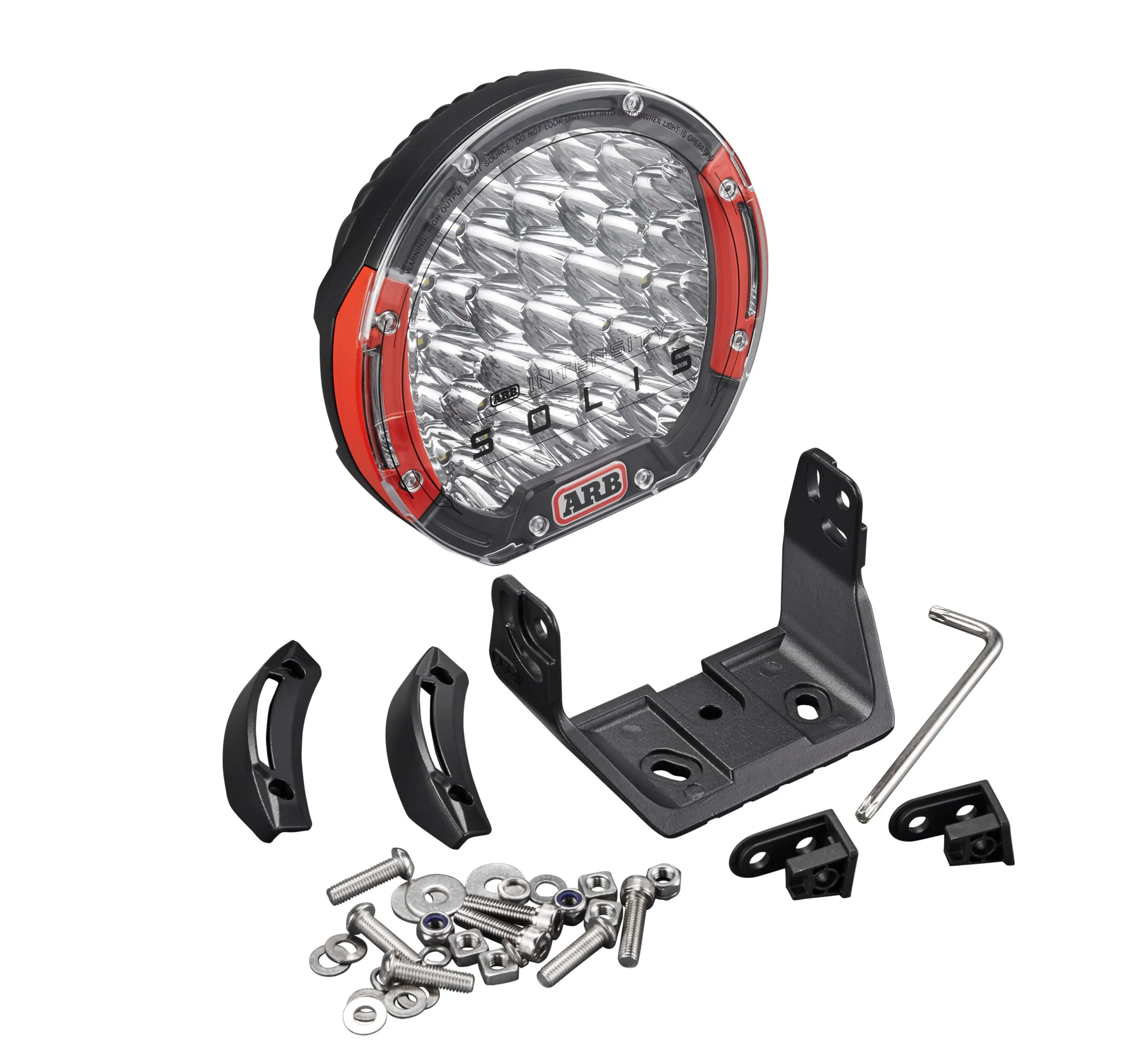

Kit Includes

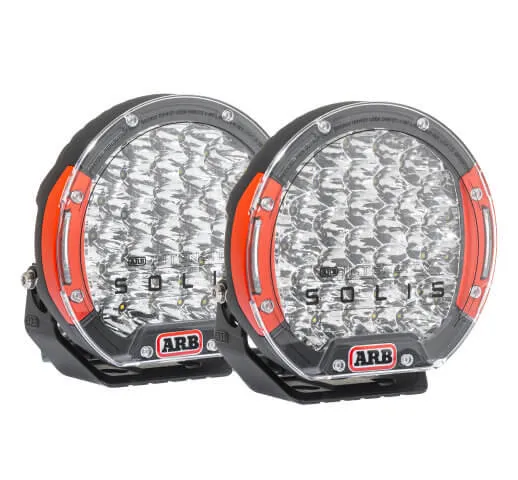

- x1 Intensity Solis Flood Beam Light
- x1 Intensity Solis Spot Beam Light

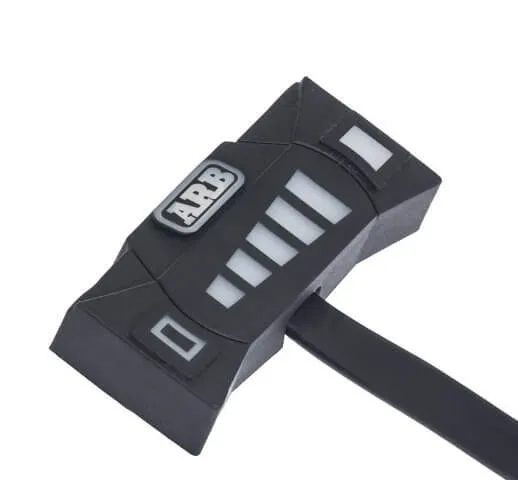

- x1 Harness with 5-step dimmable switch
| SPOT | FLOOD | |
| INPUT | 10-30 volts | 10-30 volts |
| POWER | 165W | 165W |
| CURRENT DRAW | 12.4A @ 13.2V | 12.4A @ 13.2V |
| OUTPUT - RAW | 18,178 LUMENS | 18,178 LUMENS |
| OUTPUT - EFFECTIVE | 9,546 LUMENS | 8,333 LUMENS |
| 1 LUX READING | 3385 FEET | 2391 FEET |
| SPREAD | 6 DEGREES | 11 DEGREES |
| OPERATING TEMP | -40 º to 149ºF | -40 º to 149ºF |
| COLOR TEMP | 5,700K | 5,700K |
| WEIGHT | 7.27LBS | 7.27LBS |
| CONNECTOR | 4-PIN AT WATERPROOF | 4-PIN AT WATERPROOF |
| DIMENSIONS | 8.9" W X 8.7" H X 4.7" D | 8.9" W X 8.7" H X 4.7" D |
| WARRANTY | 3 YEARS | 3 YEARS |
